Spring Data JPA - setup and configuration

Table of Contents

pom.xml dependencies

You only need to add the spring-boot-starter-data-jpa artifact, and your JDBC driver to your maven build. The Spring Boot Starter includes all required dependencies and activates the default configuration.

<!-- web for access H2 database UI and RestController -->
<dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
</dependency>

<dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>

– If you want to use MySQL:

<dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <scope>runtime</scope>
</dependency>

– or PostgreSQL:

<dependency>
        <groupId>org.postgresql</groupId>
        <artifactId>postgresql</artifactId>
        <scope>runtime</scope>
</dependency>

– or H2 (embedded database):

<dependency>
        <groupId>com.h2database</groupId>
        <artifactId>h2</artifactId>
        <scope>runtime</scope>
</dependency>

Configure Spring Datasource, JPA, Hibernate using application.properties

Spring Boot and Spring Data JPA handle the default configuration for you, so that you only need to override the parameters you want to change.

spring.datasource.url = jdbc:postgresql://localhost:5432/recipes
spring.datasource.username = postgres
spring.datasource.password = postgres

– For MySQL:

Reference: https://github.com/explorer436/programming-playground/blob/main/java-playground/spring-data-examples/spring-data-jpa-file-io-with-mysql/src/main/resources/application.properties

spring.datasource.url= jdbc:mysql://localhost:3306/myCustomDatabase?sessionVariables=sql_mode='NO_ENGINE_SUBSTITUTION'&jdbcCompliantTruncation=false
spring.datasource.username=dbuser1
spring.datasource.password=dbuser1password
spring.datasource.driverClassName=com.mysql.cj.jdbc.Driver
spring.jpa.database-platform=org.hibernate.dialect.MySQL8Dialect

# Hibernate ddl auto (create, create-drop, validate, update)
spring.jpa.hibernate.ddl-auto= update

spring.data.jpa.repositories.enabled=true
spring.jpa.show-sql=true
spring.jpa.database=mysql

– For PostgreSQL:

spring.datasource.url= jdbc:postgresql://localhost:5432/testdb
spring.datasource.username= postgres
spring.datasource.password= 123

spring.jpa.properties.hibernate.jdbc.lob.non_contextual_creation= true
spring.jpa.properties.hibernate.dialect= org.hibernate.dialect.PostgreSQLDialect

# Hibernate ddl auto (create, create-drop, validate, update)
spring.jpa.hibernate.ddl-auto= update

– For H2 database:

spring.datasource.url=jdbc:h2:mem:testdb
spring.datasource.driverClassName=org.h2.Driver
spring.datasource.username=sa
spring.datasource.password=

spring.jpa.show-sql=true
spring.jpa.properties.hibernate.dialect=org.hibernate.dialect.H2Dialect
spring.jpa.hibernate.ddl-auto= update

spring.h2.console.enabled=true
# default path: h2-console
spring.h2.console.path=/h2-ui

How does Spring use spring.datasource properties

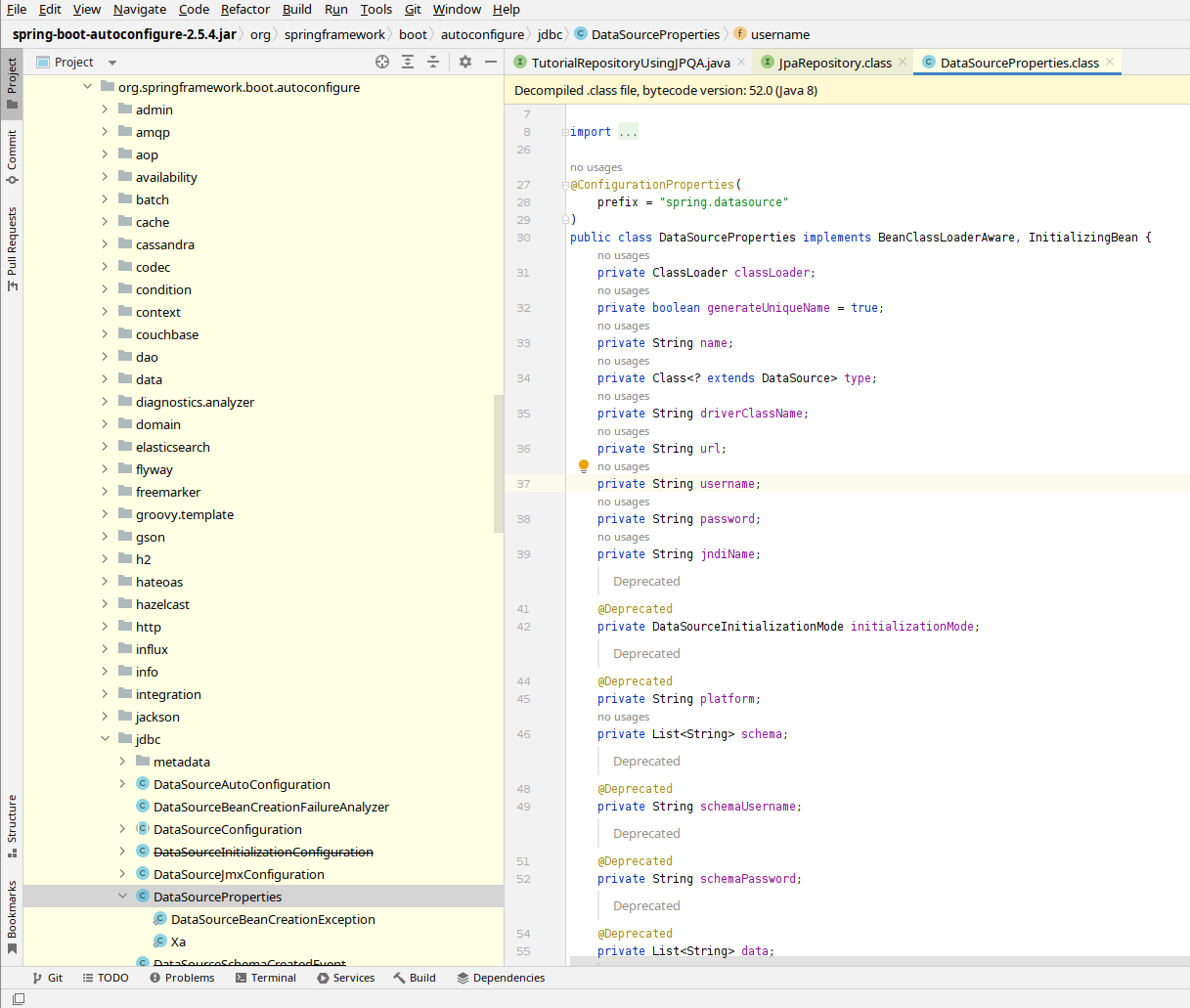

Spring maps these settings to an instance of org.springframework.boot.autoconfigure.jdbc.DataSourceProperties using the @ConfigurationProperties annotation.
